Used these to mount panels to my roof rack of my camper, easy to use.

These are easy to install and they have fit perfectly on every panel I have used them with. Highly recommended.

I used these to mount the solar panel for the fan on my storage shed. Worked perfectly and easily. Only used three on the sloped roof. Also purchased a silicone caulking, but didn't need it with the way the foam washers in this kit worked. Nice product.

Solid, lightweight, and practical mounting solution for solar panel installations on RVs, boats, trailers, and off-grid rooftops. Made from corrosion-resistant aluminum, these brackets hold up well in harsh weather conditions while keeping the overall setup light. The kit includes all necessary hardware for installation, making the process straightforward even for DIYers.

I install these brackets (Renogy Solar Panel Mounting Z Bracket 4 Units) directly to the roof and so far I have not seen any issues. Note that regardless of how you try to install solar panels on your shingle type roof there are going to be some type of penetration through shingle and roof. You can install these brackets directly onto the roof; however, there are some precautions you must take to prevent leakage.

You can't use the included bolts, as they are sheet metal screws. I used ¼" x 1½" steel bolts with nuts and washers. Drill the holes just big enough where you must use a wrench to drive the bolts through the roof...this way they'll be tight, which will lessen the chances of water leakage. Drive the bolts through the roof just far enough to allow a small gap between the bracket and the shingle surface. Using a caulking gun, apply roof sealant under the bracket...making sure the sealant does indeed completely covers area under the bracket. Next, drive the bolts all the way down until brackets are tight against shingles.

The next step is to get inside the attic and install the washers and nuts. This task is easier with two people, one on the roof to hold or turn the bolts and one inside the attic to install and tighten the nuts, but one person can do it with a little creativity. Note that tightening the bolts/nuts will squeeze some sealant from under the bracket. Just go back on the roof and spread the sealant evenly around the brackets and around the bolt heads...the main goal is to make sure the area around bracket is completely seal. Apply as much sealant as needed to ensure everything is completely seal.

I had mine installed about a week ago here in South Florida. It's been raining almost in a daily basis and so far I have not seen a leak.

The one thing I can say for sure is whether or not the brackets leave enough space between the solar panel and roof for cooling purposes. Perhaps someone else here can clarify that point.

Excellent finish and product work awesome

Well made…easy to install!…. A good buy!

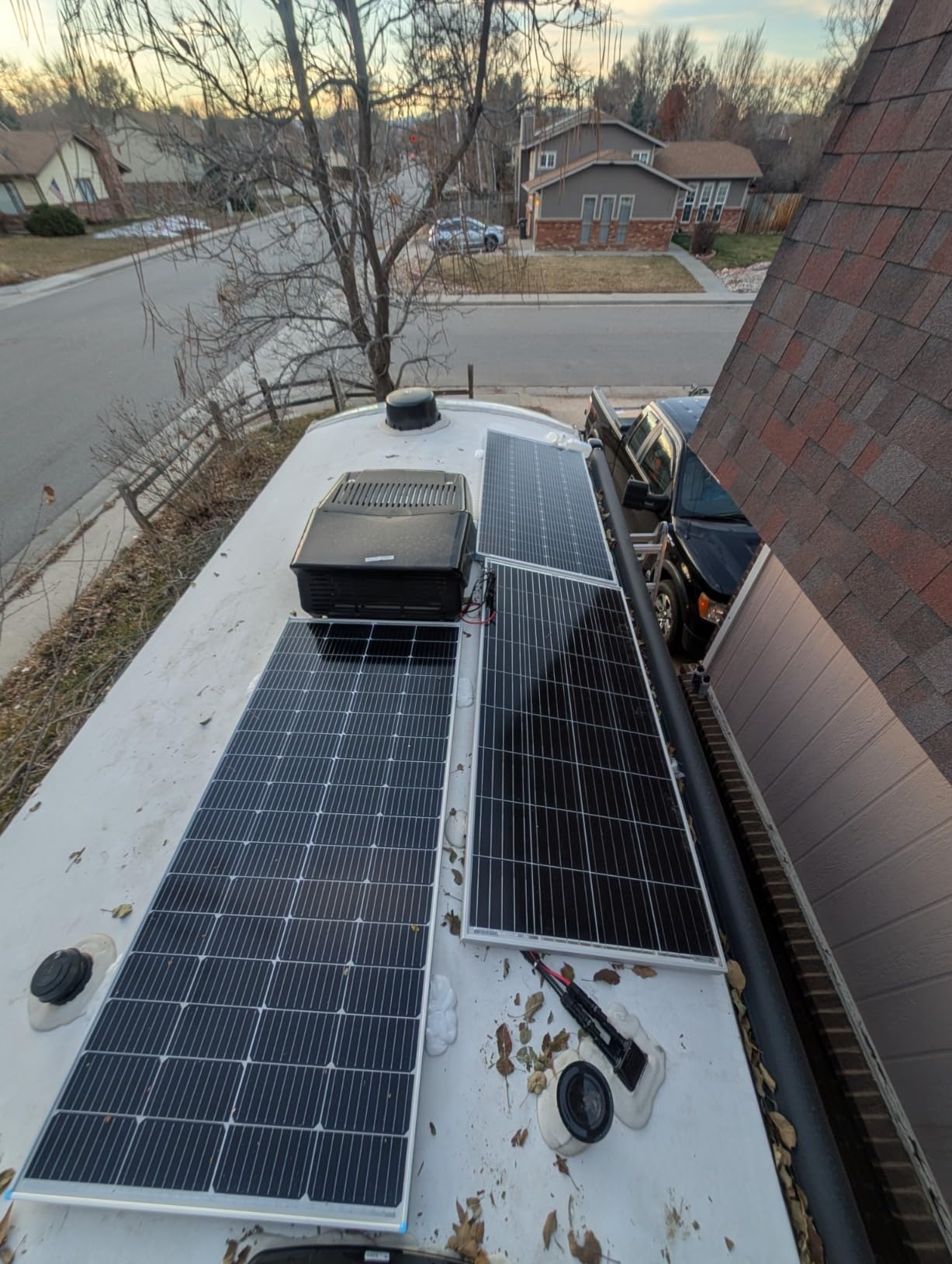

There's not much to say about these brackets other than the fact they are simple, sturdy, nicely machined, and easy to install. I used these brackets to mount some Renogy 100-watt solar panels to my RV and they work great. They are attached to wood blocks that are glued to the RV roof since I didn't want to drill holes in the RV roof. They have been up there for 3 years now and I have had no problems whatsoever. These are a "must buy" in my opinion.

Ottimi come gli originali

les attaches pour panneau solaire sont solides et en alu.

impossible de trouver des attaches similaires à ce prix !

Lätta och stabila fästen med skruv

Good quality solar panel brackets- fits Renogy pre drilled holes

Can also be used for other panels but you may have to drill holes as a I did

Review for the Z Bracket. I have a Lumera panel, and bracket fit perfectly.

Seems very solid, and the included hardware are quality parts too, important to me since so many items come with cheap hardware.

Very happy with the quality of this item.
